TUOPUONE RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 64 × 32 Pixels, Adjustable Brightness, GOB Version

Features at a glanceThe product is a 64 × 32 resolution full-color RGB LED dot matrix module, integrating 2048 LEDs and equipped with dual HUB75 headers, supporting cascade expansion and rapid integration. The GOB version features enhanced encapsulation, improving protection and operational reliability.2048 individual RGB LEDs, full-color display, adjustable brightness64 × 32 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation160 × 80 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount displayOnboard dual HUB75 headers, one for controller data input, one for output, chain supportGOB technology delivers anti-collision, waterproof, moisture-proof, and dust-proof protectionProvides open source development resources (examples for RaspbPi / Raspb Pi Pico / ESP32)SpecificationsDimensions：160 × 80 (mm)Pixels：64 × 32 = 2048 DOTSPitch：2.5mmPixel form：1R1G1BViewing angle： ≥140°Control type：synchronizationDriving：1/16 scanHeader：HUB75Power supply：5V / 2.5A (VH4 header input)Power：≤12WPackage ContentRGB-Matrix-P2.5-64x32-BIt is recommended to used with a 5V 4A power supplyRGB-Matrix-P2.5-64x32 GOB matrix x1VH4 2PIN cable ~500mm x116PIN flat cable ~200mm x1Power supply terminal adapter x12 × 8PIN cable ~30cm x1Magnetic screws pack 4PCS x1

• 2048 individual RGB LEDs, full-color display, adjustable brightness
• 64 × 32 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
• 160 × 80 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount display

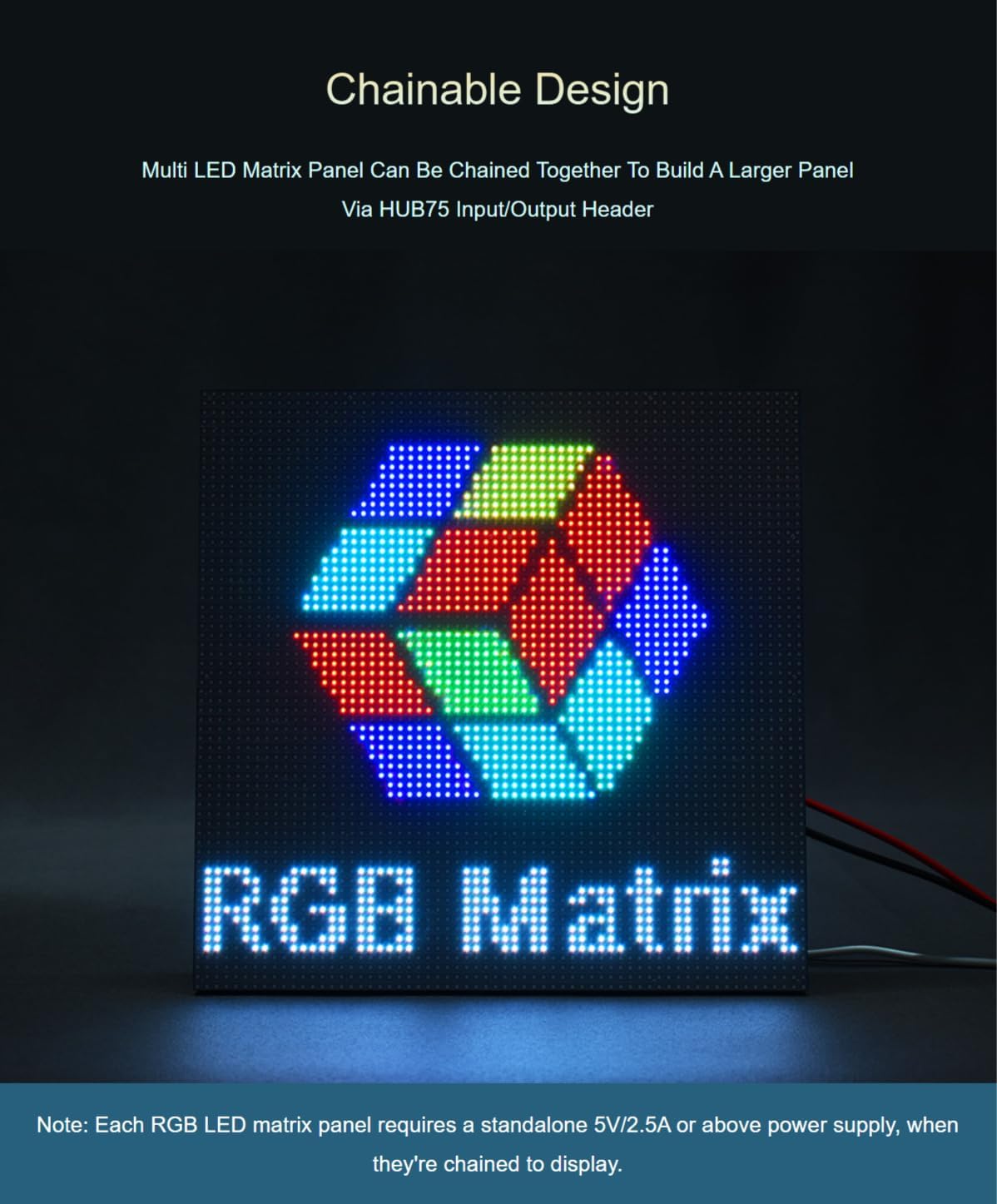

• Onboard dual HUB75 headers, one for controller data input, one for output, chain support

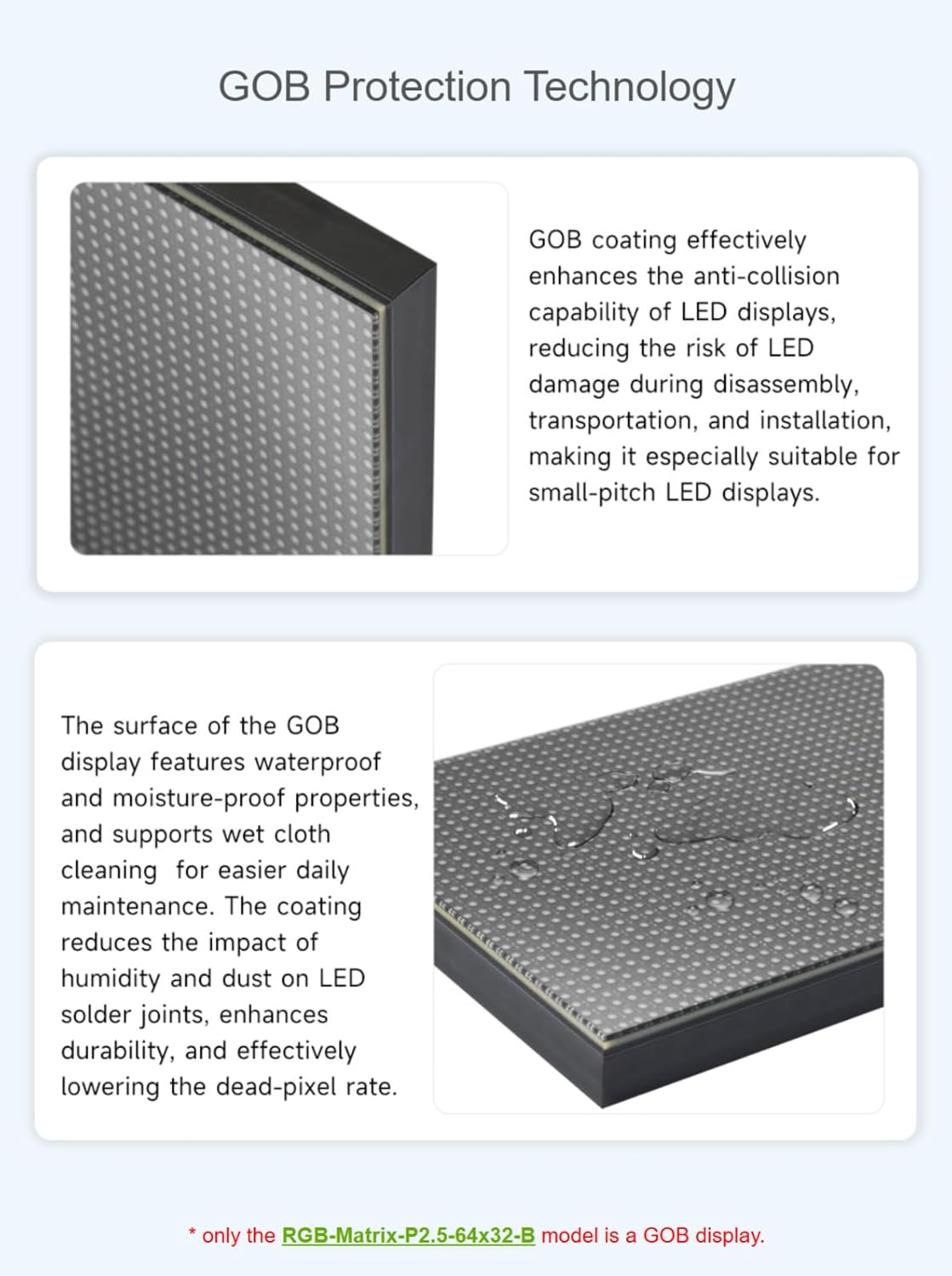

• GOB technology delivers anti-collision, waterproof, moisture-proof, and dust-proof protection
