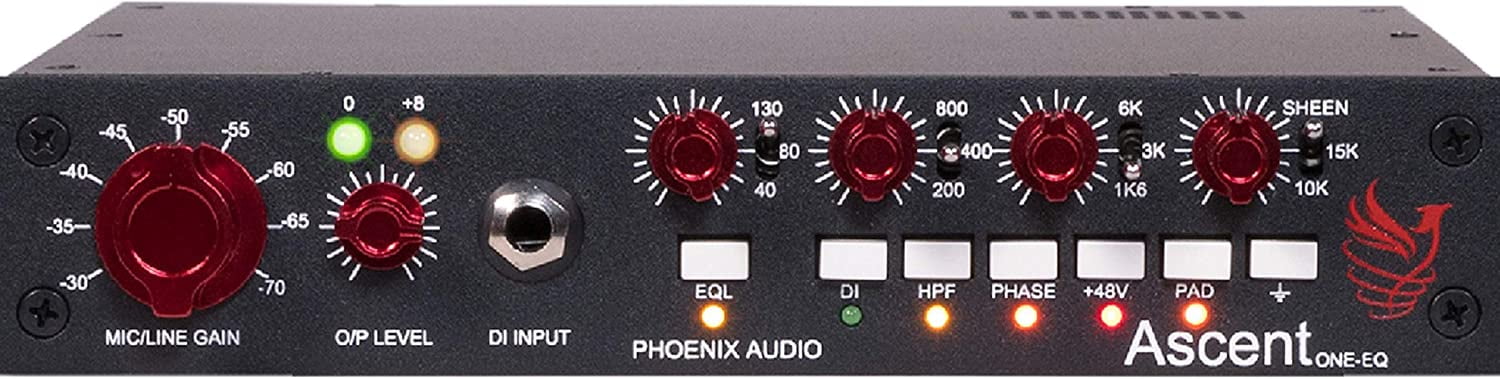

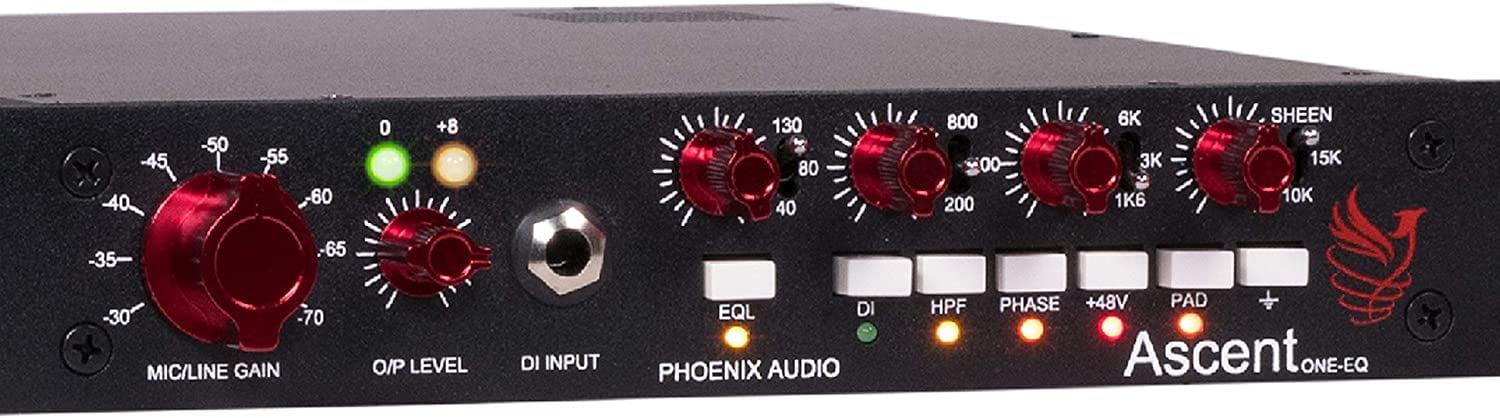

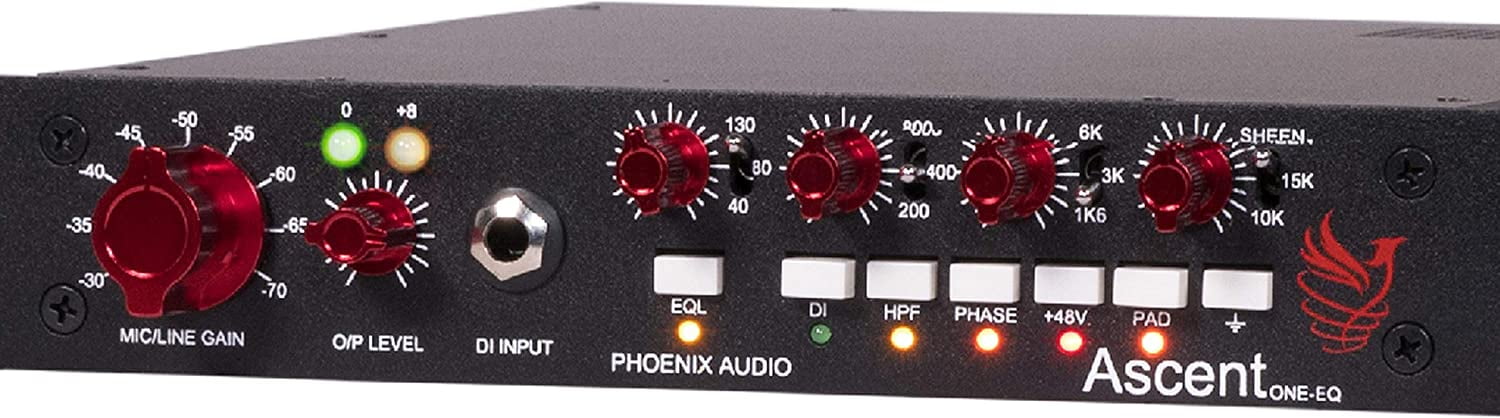

Phoenix Audio Ascent One EQ - Mono Class A Microphone Pre-Amplifier/DI/EQ

The Phoenix Ascent Mic Preamp/DI takes a modern approach to Class-A circuit design that delivers a wide range of tones without sacrificing the vibe of true Class-A design. The unique Ascent circuit can go from ultra-clean sounds suitable for audiophile recordings all the way to the warm, saturated tones reminiscent of the UK's vintage designs. Versatility and superior sound have made the Ascent Preamp/DI a top-tier choice for engineers around the world and a modern classic. It is available in mono and stereo configurations, with and without EQ. This is the Mono version equipped with EQ.<p></p> <p></p> <p><strong>Hi-Fi Transformerless Mic Input Stage</strong></p> <p>This exclusive electronically-balanced, transformerless mic input circuit delivers fast transients and the full frequency spectrum (from sub-bass to the highest air band), while still delivering the full, warm and smooth characteristics that make engineers love Class-A mic preamps. Boldly outperforming transformer-based designs in both the frequency response and slew rate, the Ascent delivers articulate, punchy and full-bodied input signals, allowing you to drive the output stage for a vast range of pure Class-A tones—from bold clarity to vintage warmth, and everything in between.</p> <p></p> <p><strong>Legendary Transformer-Balanced Output Stage<br></strong>Its custom-wound&nbsp; DB694 output transformer is coupled to Phoenix's proprietary, fully discrete DSOP-2 output amplifier. The DSOP-2 is a direct descendent of the TF1 amp which Phoenix's head-designer, David Rees, developed as an upgrade for vintage Neve modules. Going beyond the TF1, the DSOP2 is the pinnacle of Class-A output circuit design, offering a smooth transition from ultra-clean to beautifully saturated tones.</p> <p></p> <p><strong>Ultra-High Impedance DI Circuit<br></strong>The Ascent mic pre series includes very high input impedance DI circuits (10Mohm)— with no FETs—on every channel. This means that guitar and bass pickups are not loaded, allowing the natural sound of both modern and vintage instruments to shine, enhancing the sound, sparkle and growl as if they were plugged into your favorite amp. Synths, drum machines, and even laptops can likewise be sweetened by the Ascent's DI.</p> <p></p> <p><strong>Easy and Intuitive In The Studio<br></strong>Because you're working with a clean, robust, electronically-balanced input signal, the Ascent Mic Preamp/DI makes dialing in your exact sound easy, intuitive and quick. By working the familiar stepped input gain control (up to 70db alone) and the -30dB pad against the variable output fader (which provides an additional 10dB of gain), you can dial in your preferred tones without having to consider an overly complex gain architecture. It's all about driving the versatile DSOP-2 output stage to your exacting tastes, whatever they may be in any given moment. Like so many other engineers, you'll find yourself reaching for the Ascent Mic Preamp/DI over and over again to reliably deliver a vast array of outstanding sounds for any instrument or voice you're recording.</p>

• Phoenix Audio's unique Class A, transformerless, true-balanced mic input stage
  Phoenix Audio's transformer-balanced DSOP-2 Class-A discrete output stage with custom wound DB694 output transformer
  Wired with PTFE silver plated military grade cable
  -15dB input pad
  LED Gain Metering
  Push buttons: Hi-Pass, Phase Reverse, Switchable 48V phantom power on push-button switch
  High Pass Filter on Push-button Switch (Roll-off -6dB per octave @ 80Hz)
  Phase Reverse on Push-Button Switch
  Mic Pre Gain Range: -30 to -70 in 5dB steps With 10dB more available on the detented ouput fader.
  Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.
  Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  Frequency response Class A (DSOP-2) output stage: 20Hz to 20kHz +- 0.5dB, Maximum

  4 Bands of Gyrator EQ + High-Pass Filter
  High – 15K, 10K, 25K 'sheen band'
  Hi Mid – 6K, 3K, 1K6
  Low Mid – 800Hz, 400Hz, 200Hz
  Low – 130Hz, 80Hz, 40Hz

  High Pass Filter at 80Hz, 12dB/octave
  EQ Cut/Boost Levels
  16dB Cut/Boost Per Band

  EQ bands are stepped/detented to 21 positions for easy recall & stereo operations for mastering or the mix bus
  Phoenix Audio's Class-A DSOP-2 Output Amplifier with custom-wound transformer
