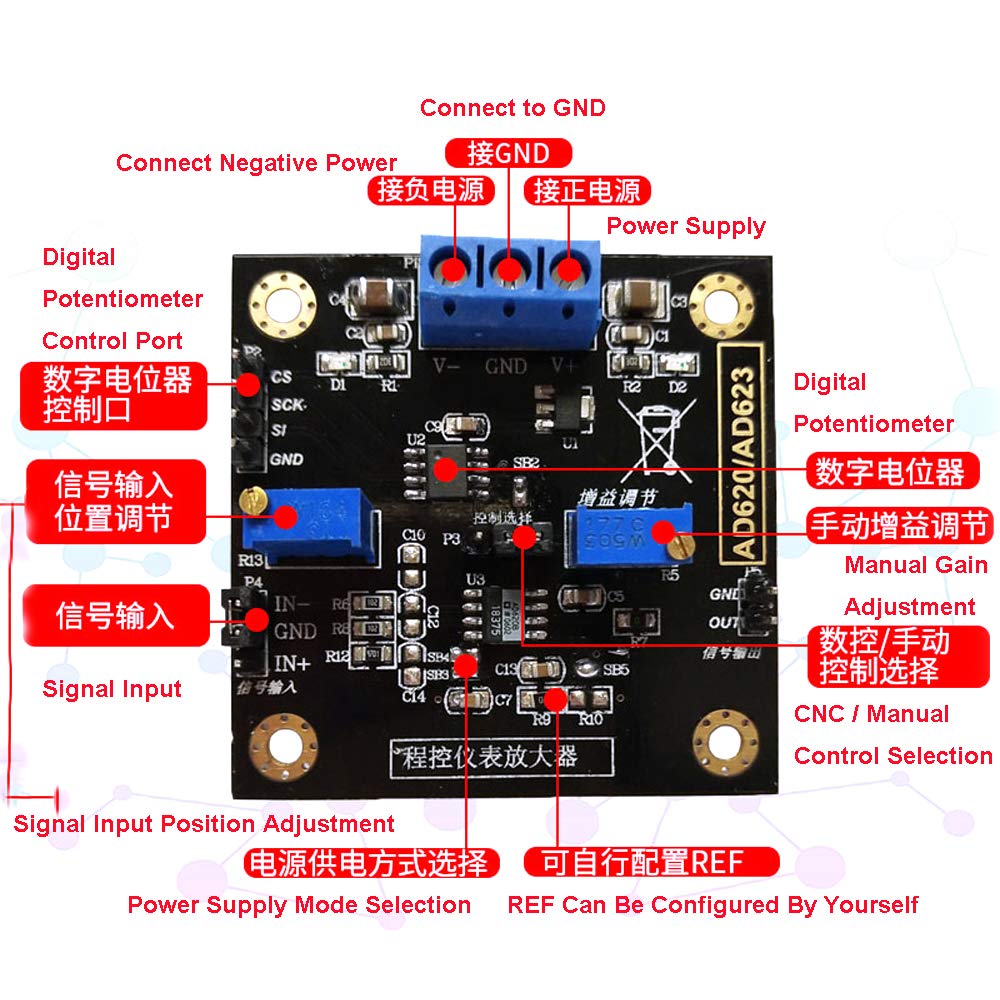

Instrumentation Amplifier AD620 Voltage Amplifier CNC MCP41010 Gain Adjustment Differential Signal Module

Specification: Module model: AD620 Module type: weak signal amplifier Input signal formation: single-ended or differential (disconnect SB5 jump point to be differential input) Input voltage range: 100uV-1Vpp Module supply voltage: ±15V (MAX) Module power supply current: 20mA Output voltage range: ±13V (output within power supply) Output current: 10mA (MAX) Module gain range; 1-10000 times (adjustable sliding) Gain control method: program control/slip change (jump cap switch) Program control protocol: SPI (8-bit digital potentiometer) Bias voltage adjustment range: ±2V (MAX) Input offset voltage: 200uV (MAX) Input offset drift: 2uV/℃(MAX) Input bias current: 125mA (MAX) Common mode rejection ratio: 90dB (MIN, G=10) Input voltage noise: 35nV √Hz Module weight: 16g Module protection: None Module specifications: 50x50x7mm Module heats up; no heat sink (excessive input voltage may heat up) Module heating factor: the input voltage is too large or the module is damaged Module working temperature: -40℃ - +75℃ (industrial grade) Module features: output power LED indication, output 5V linear power Application scope: load cell, data acquisition front end, etc. Packing: 1*Signal Amplifier

• Module model: AD620
• Module type: weak signal amplifier
• Input signal formation: single-ended or differential (disconnect SB5 <br>jump point to be differential input)
• Input voltage range: 100uV-1Vpp
• Module supply voltage: ±15V (MAX)
